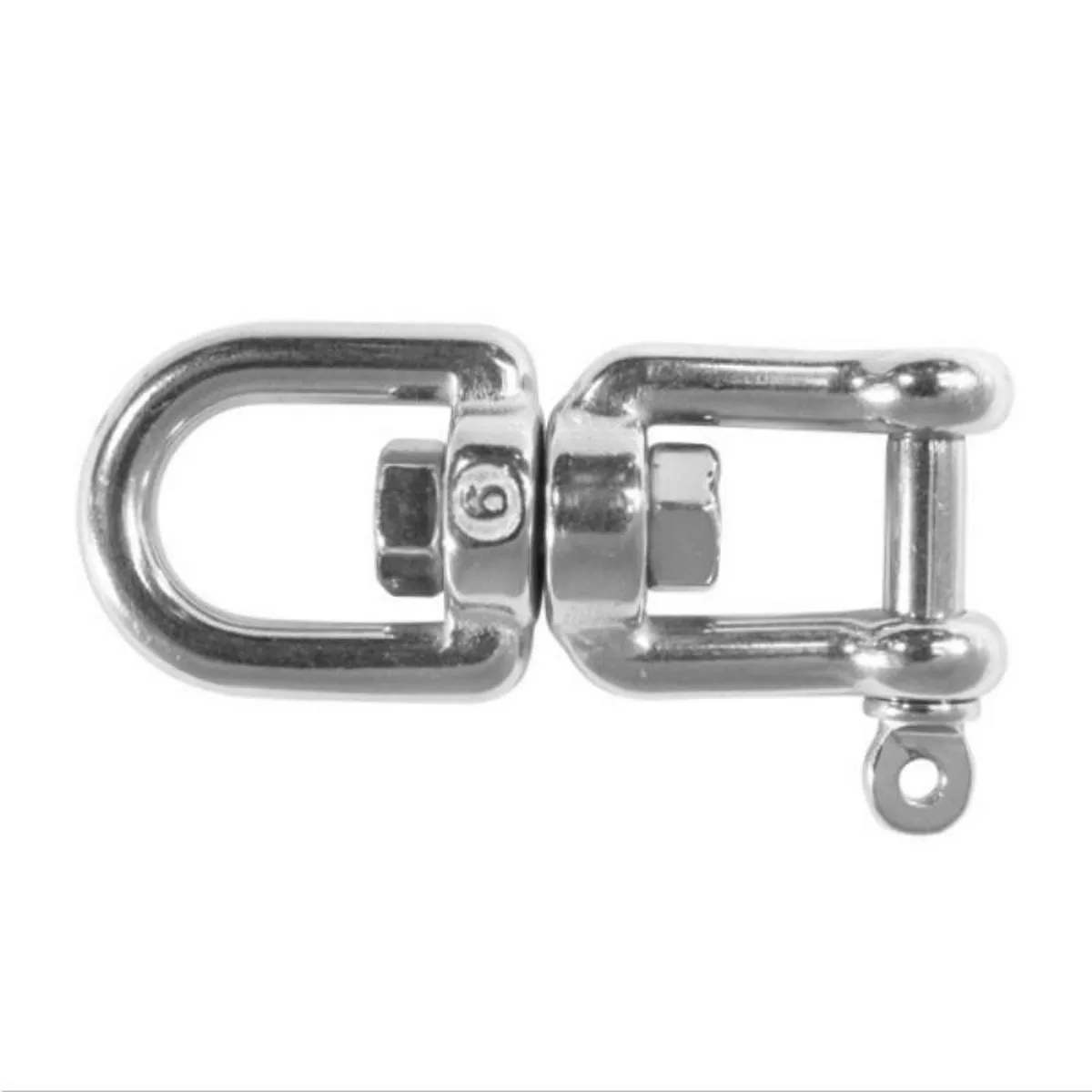

Cast 316 grade stainless steel eye and fork swivels. Welded nut pivot bolt. Drilled jaw pin for security tie wire.
Not SWL rated for lifting purposes.
| Part Number | Pin Diameter | Length (A) | B | Inner Width (C) | Inner Length (D) | Break Load |
|---|---|---|---|---|---|---|
| BLA-165474 | 6mm | 66mm | 12mm | 15mm | 11mm | 1200kg |
| BLA-165476 | 8mm | 88mm | 16mm | 20mm | 16mm | 1900kg |
| BLA-165478 | 10mm | 112mm | 20mm | 24mm | 21mm | 3500kg |
| BLA-165480 | 12mm | 146mm | 26mm | 33mm | 26mm | 5000kg |
