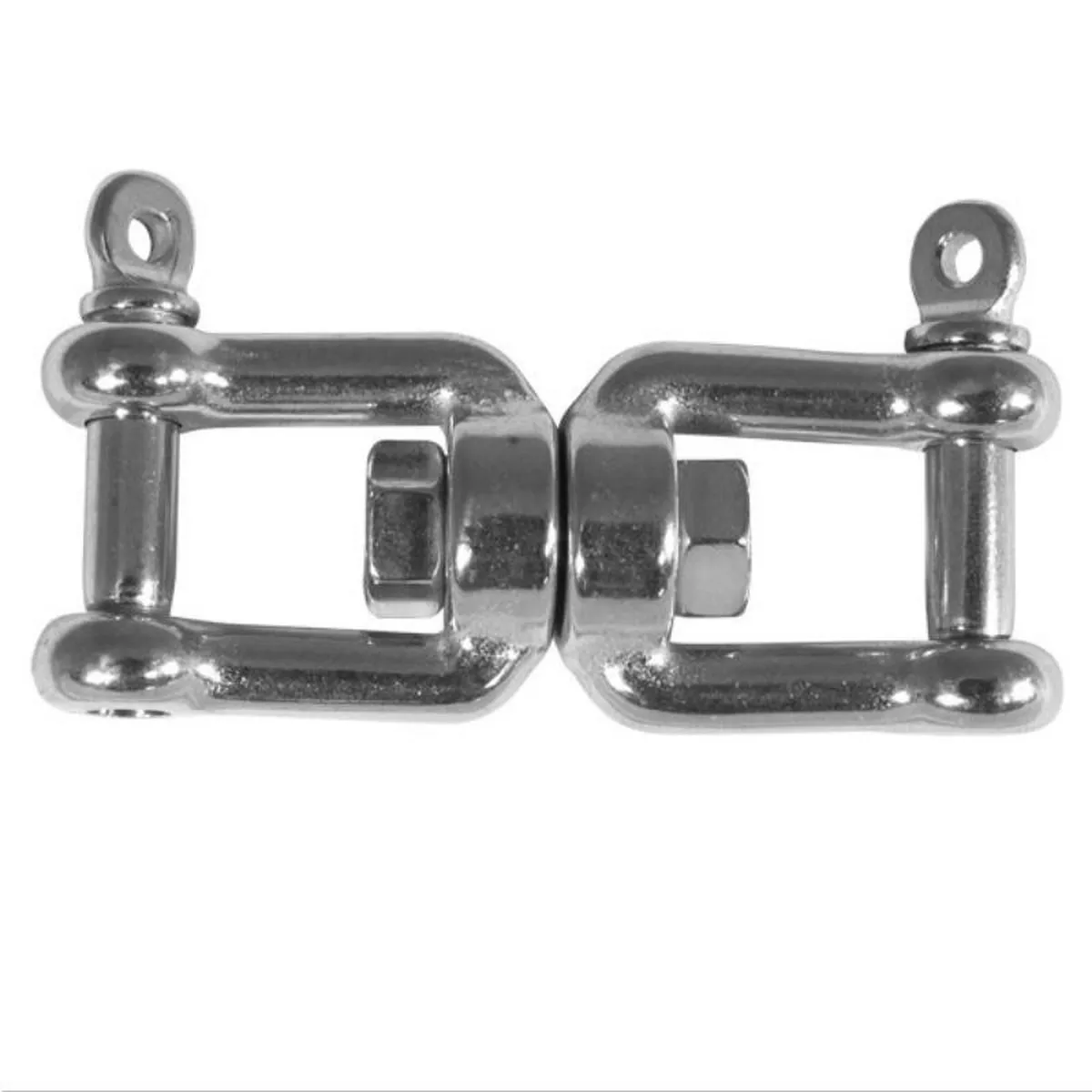

Cast 316 grade stainless steel fork and fork swivels. Welded nut pivot bolt. Drilled jaw pins for security tie wire.
Not SWL rated for lifting purposes.
| Part Number | Pin Diameter | Length (A) | Internal Width (B) | Internal Length (C) | Break Load |
|---|---|---|---|---|---|
| BLA-165494 | 6mm | 64mm | 12mm | 11mm | 1200kg |
| BLA-165496 | 8mm | 87mm | 16mm | 16mm | 1900kg |
| BLA-165498 | 10mm | 112mm | 20mm | 21mm | 3500kg |
| BLA-165500 | 12mm | 152mm | 26mm | 26mm | 5000kg |
