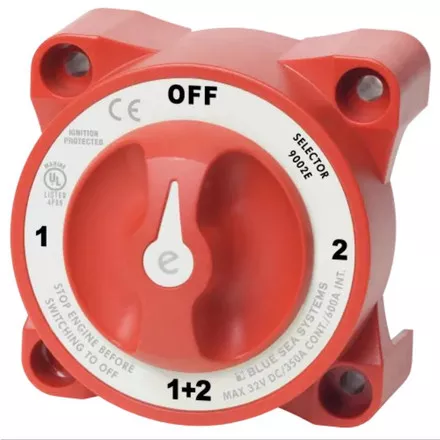

Blue Sea Systems e-Series Battery Switch with AFD – Selector 4 Position
- Switches isolated battery banks to all loads or combines battery banks to all loads
- Make-before-break contact design allows switching between battery banks without power interruption
- Ignition protected – safe for installation aboard gasoline powered boats
- Case design allows surface or rear panel mounting
- Includes AFD (Alternator Field Disconnect)
| Battery Combine | Yes |
|---|---|
| Alternator Field Disconnect | Yes |
| Cranking Rating 30 Sec | 1200A |
| Cranking Rating 5 min. | 600A |
| Mounting Holes | Accept 10 Screw |
| Part Number | Colour | Switch Type | Maximum Voltage | Continuous Rating |
|---|---|---|---|---|
| BSS-9002E | Red | Selector 4 Position | 32V DC | 350A |
