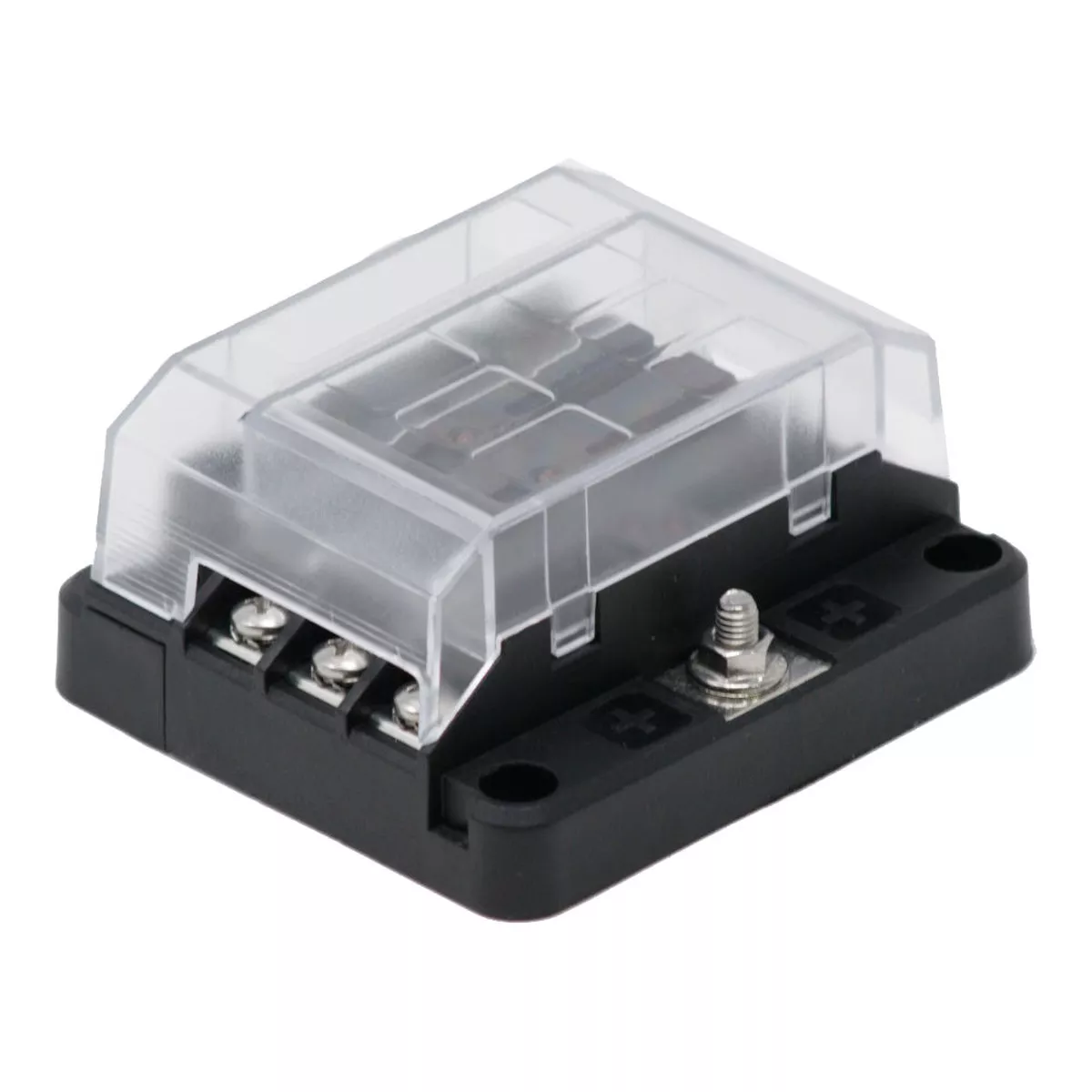

The RT Fuse Block 6 Position with LED Indication is an essential component for marine electrical systems, offering reliable power distribution and easy fault detection to keep your vessel’s circuits running smoothly.
Key Features
- Modular Design: Create seven unique configurations using Egis 8028 & 8030 modules, simplifying inventory and catering to diverse marine build requirements.
- LED Indication: Integrated LED indicators for each fuse position provide immediate visual feedback on circuit status, enhancing troubleshooting and maintenance onboard.
- Durable Construction: Built with high-temperature materials and stainless steel self-locking hardware, this fuse block withstands harsh marine environments and ensures secure mounting in any location on your boat.
- Spare Fuse Locations: Two spare positions per six circuits allow for additional fuse storage or the integration of test resistors, aiding in efficient system evaluations and reducing noise levels from sirens during testing.
- Corrosion-Resistant Hardware: All screws and nuts are made from 100% non-ferrous materials, preventing corrosion and ensuring long-term reliability in saltwater conditions.
- Protective Design: Cover and label recesses safeguard terminal studs and cable edges from accidental shorts, enhancing overall system safety.
Applications
Ideal for a wide range of marine applications, the RT Fuse Block 6 Position with LED Indication is perfect for:
- Protecting critical marine electronics and auxiliaries by managing power distribution efficiently.
- Facilitating remote diagnostics and rapid fault correction, minimizing downtime and ensuring safe vessel operations.
- Enhancing the durability and reliability of your boats electrical system in demanding marine environments.
Technical Specifications
| Parameter | Details |
|---|---|
| Maximum Current (Entire Block) | 100 Amps |
| Maximum Current (Per Circuit) | 30 Amps |
| Max Output Wire Size | 10 AWG |
| Voltage Range | 0-36 VDC |
| Number of Fuse Positions | 6 |
| Compatible Fuse Types | ATO, ATC, ATF |
| Amperage | 100A |
| Type | Fuse Blocks |
| Box Dimensions | 3″H x 3″W x 5″L |
| Weight | 0.5 lbs |
| UPC | 850035199732 |
Why Choose RT Fuse Block for Your Boat?
Ensuring the safety and efficiency of your boats electrical system is paramount. The RT Fuse Block 6 Position with LED Indication not only offers robust protection for your circuits but also simplifies maintenance with its intuitive LED diagnostics. Its corrosion-resistant materials and secure mounting options make it a reliable choice for any marine environment.
Additional Resources
Quick Guide (PDF)
