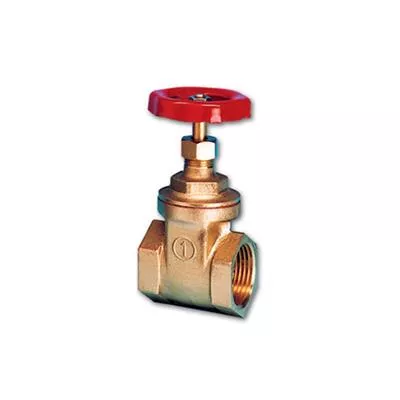

Guidi 1522.200002–1522.200009 – Bronze Gate Valve, BSPP Thread
The Guidi 1522 series gate valve is a reliable shut-off solution designed for marine environments. Manufactured from high-quality bronze, it ensures durability and resistance to corrosion in seawater applications.
This valve is equipped with BSPP threaded connections according to ISO 228/1, allowing easy integration into standard marine piping systems. The gate valve design provides full bore flow with minimal pressure loss when fully open.
Key Features
- Type: Gate valve (shut-off valve)
- Material: Bronze
- Thread standard: BSPP (ISO 228/1)
- Full flow with low pressure loss
- Suitable for marine water systems
Available Variants
| Model | Thread Size |
|---|---|
| 1522.200002 | 1/4″ |
| 1522.200003 | 3/8″ |
| 1522.200004 | 1/2″ |
| 1522.200005 | 3/4″ |
| 1522.200006 | 1″ |
| 1522.200007 | 1 1/4″ |
| 1522.200008 | 1 1/2″ |
| 1522.200009 | 2″ |
Applications
- Seawater and freshwater systems
- Marine plumbing installations
- Flow control and shut-off applications
