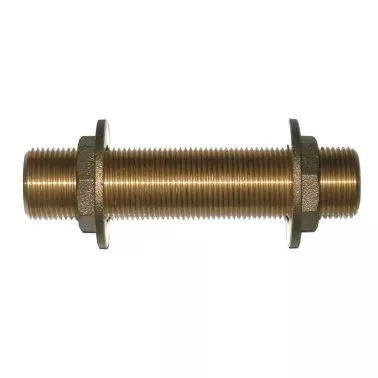

Guidi 5010B Series – Bronze Threaded Bulkhead Feedthrough Fittings, 1/2″–1 1/2″, Length 100–200 mm
The Guidi 5010B Series bulkhead feedthrough fittings are designed for passing piping through bulkheads and structural walls in marine installations. They provide a secure and sealed connection point between compartments.
Manufactured from high-quality marine-grade bronze, these fittings offer excellent corrosion resistance and durability in harsh seawater environments.
Key Features
- Type: Bulkhead feedthrough fitting
- Connection: Threaded
- Material: Marine-grade bronze
- Designed for bulkhead and wall installation
- High corrosion resistance
- Supplied with fixing nut and flange
Available Variants
| Size | Length | OEM Part Number |
|---|---|---|
| 1/2″ | 100 mm | 5010B.200316 |
| 3/4″ | 150 mm | 5010B.200330 |
| 1″ | 150 mm | 5010B.200341 |
| 1 1/4″ | 200 mm | 5010B.200355 |
| 1 1/2″ | 200 mm | 5010B.200366 |
Application
Used for routing pipes through bulkheads in marine systems such as water, fuel, and drainage installations while maintaining structural integrity and sealing.
