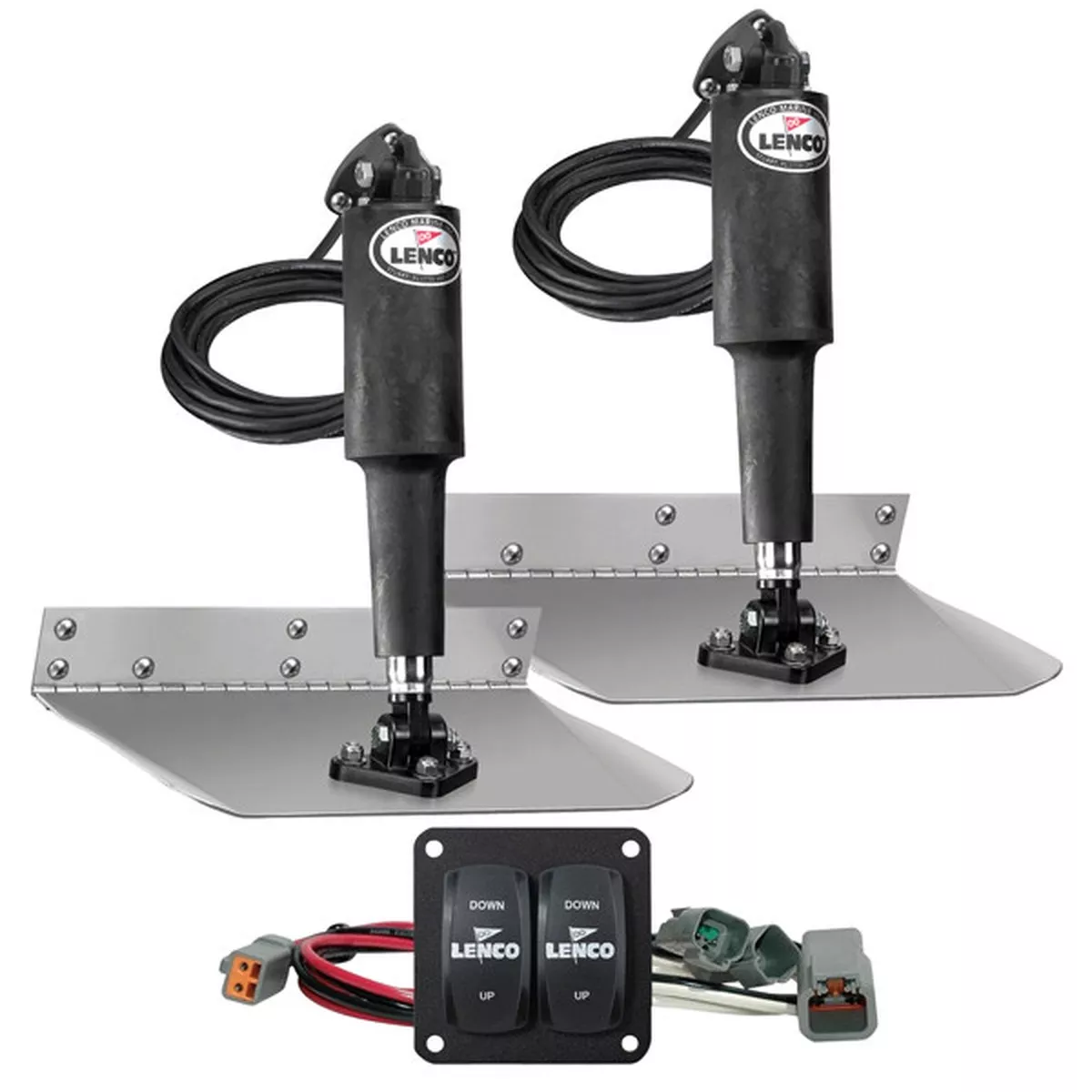

Standard-Mount Lenco Trim Tab Kit. This is a 12V kit. A 24V option is also available where the actuators are upgraded to 24V – contact us for pricing details.
This trim tab kit comes with a 3 Year Manufacturer’s warranty plus a Lenco owner’s installation manual
Included in the kit:
- 2 x Standard Mount Plates, 12 Gauge (2.7mm) – 304G stainless steel with a 5/8″ flared trailing edge and 1/8″ diameter hinge pin.
- 2 x 12 volt 101 actuators with 1.8m cable and Deutsch connectors.
- 2 x actuator extension wiring harness (6m) with Deutsch connectors.
- 1 x set of stainless steel fasteners.
- 2 x upper mounting bracket with gland seal.
- 2 x lower mounting bracket.
Switch Kit:
- Double Rocker Switch
- Waterproof plug & play Deutsch connections.
- No auto retract feature.
- Does not require control box.
- Installation screws included.
| Part number | Approx. Boat Length | Tab Length | Tab Width | Min Transom Height | Hinge Height |
|---|---|---|---|---|---|
| LEN-55410 | 4.3m – 5.5m | 228mm (9″) | 228mm (9″) | 356mm | 51mm |
| LEN-55412 | 4.9m – 7.6m | 228mm (9″) | 305mm (12″) | 356mm | 51mm |
