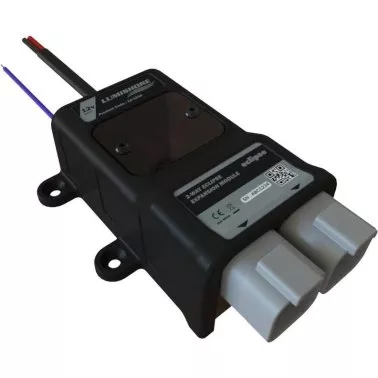

Lumishore 60-0497 – Eclipse Module Expansion – 2 Additional Zones
The Lumishore Eclipse Module Expansion is designed to extend the capabilities of the Eclipse Command Center by adding two additional lighting zones. It allows advanced control of Eclipse, SMX SUPRA, and 93 series lights through compatible multifunction displays.
This expansion maintains the ultra-compact design philosophy of the Eclipse system while increasing total capacity up to six zones. It integrates seamlessly with the Command Center and supports the same intuitive interface and lighting effects.
Key Features
- Adds two additional lighting zones
- Compatible with Eclipse, SMX SUPRA, and 93 lights
- Plug & Play installation
- Supports control via MFD or switch
Functions
- Sound-to-light
- Dimmer
- Strobe
- Color selection
Technical Data
| Voltage | 12 V DC |
| Maximum Current | 20 A |
| Waterproof Rating | IP67 |
Compatible MFDs
- Garmin – OneHelm™
- Raymarine – Axiom and Axiom Pro
- Simrad – NSO EVO3/S, NSS EVO3/S, NSX, IDS, GO models (excluding GO5 and GO7 XSE)
- B&G – Zeus3/S Glass Helm, Zeus3/S, Vulcan (excluding Vulcan5 and Vulcan7FS)
- Furuno – NavNet TZtouch3 series (TZT12F, TZT16F, TZT19F)
- Lowrance – HDS Live, HDS Carbon, Elite FS
- Humminbird – SOLIX G3 Series and APEX Series
Brand: Lumishore
