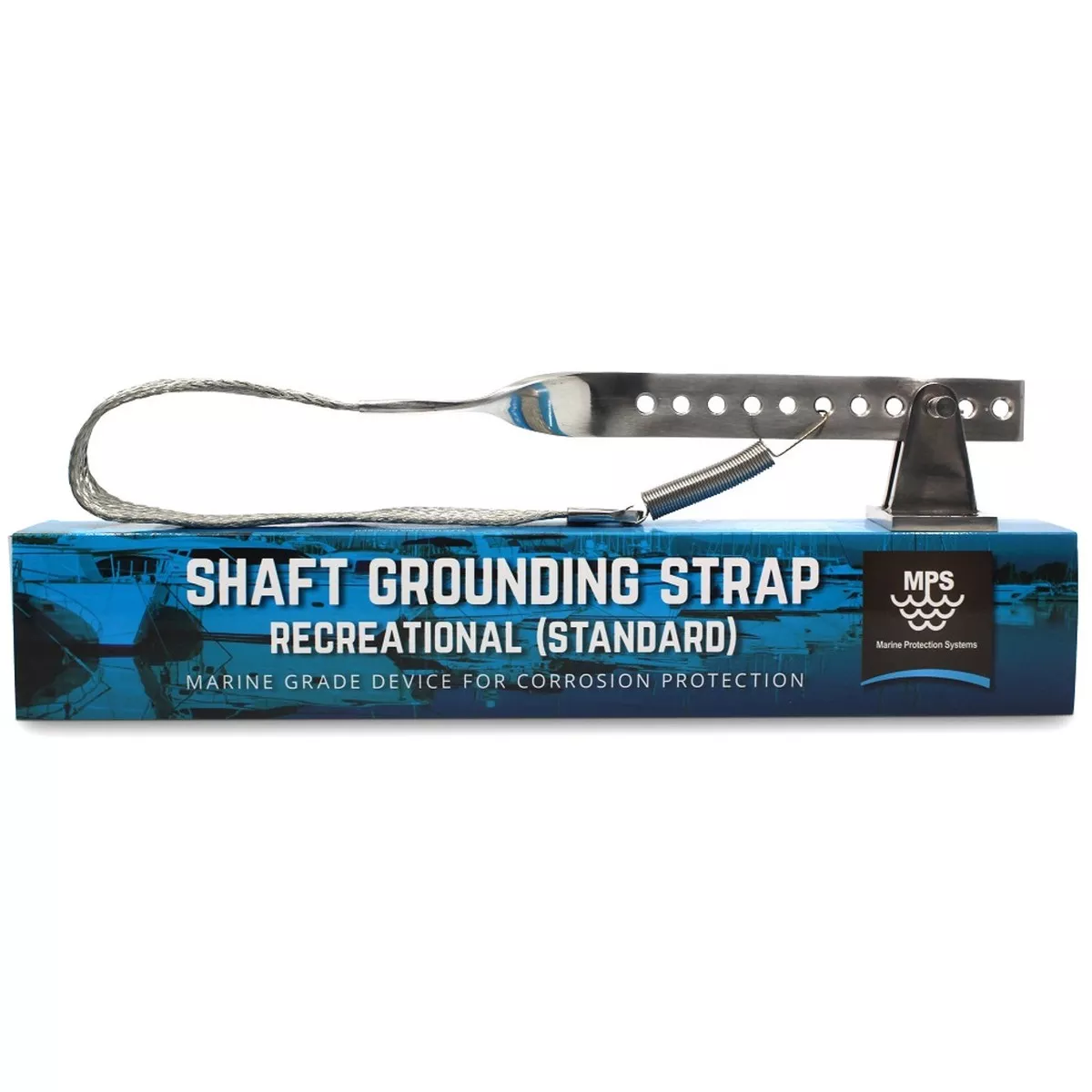

MPS Shaft Grounding Strap – Recreational

Marine Protection Systems – Shaft Grounding Strap – Recreational- MPS.SS07The MPS Shaft Grounding Strap connects a vessels driveshafts to the vessels bonding system for effective connection tohull anodes. This removes the requirement for shaft anodes on composite and wooden boats.With 11 positioning holes and multiple positioning locations for the spring, the shaft grounding strap is easy to install andflexible enough for most applications. The large surface area of connection improves cathodic protection efficiencies andwill assist with improved outcomes on coating longevity by maximizing the connection between shaft and anode.On metallic vessels, the strap is ideal for creating an additional connection to anodes on the hull for redundancy andbalancing of cathodic currents. Imbalances of cathodic protection levels (voltage) between hull, stern tube and shafts cancontribute to stern tube corrosion and crevice corrosion on the shaft. Creating equilibrium can help reduce these effects.Key Features:Tinned copper braid for superior operations in marine conditions316 marine grade stainless steel pivot arm and mountAdjustable to suit 36-inch Shafts11 positioning holes to allow for flexibility of installation in a range of boatsTested to over 4,500 hours of operation when correctly installed and maintainedInstallation & Size:The Recreational Shaft Grounding Strap is adjustable and is suited to 1-4 inch shaft diameter sizeBraid Length 13.8 inches (350mm) MPS.SS07
