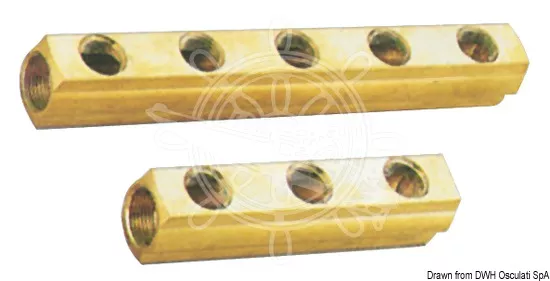

Osculati 17.316 Series – Brass Linear Distribution Manifold, 50 mm Centre Distance
The Osculati 17.316 Series Linear Distribution Manifolds provide an efficient solution for distributing water, fuel, air, and other compatible fluids from a single supply line to multiple outlets. Manufactured from durable brass, these manifolds offer excellent corrosion resistance and long service life in marine, industrial, and plumbing applications.
Each manifold features evenly spaced branch connections with a centre-to-centre distance of 50 mm, simplifying installation and pipe routing. Multiple configurations are available with different numbers of outlets and main line sizes.
Key Features
- Solid brass construction
- Linear distribution manifold design
- 50 mm centre-to-centre outlet spacing
- Main line connections of 1″ or 1″1/4
- 1/2″ branch outlet connections
- Available with 2 to 6 outlets
- Suitable for marine, plumbing, and industrial systems
- Corrosion-resistant and durable construction
Available Variants
| Osculati Code | Main Line | Derivation | Number of Outputs | Length (cm) |
|---|---|---|---|---|
| 17.316.03 | 1″ | 1/2″ | 3 | 15 |
| 17.316.04 | 1″ | 1/2″ | 4 | 20 |
| 17.316.05 | 1″ | 1/2″ | 5 | 25 |
| 17.316.06 | 1″ | 1/2″ | 6 | 30 |
| 17.316.22 | 1″1/4 | 1/2″ | 2 | 10.5 |
| 17.316.23 | 1″1/4 | 1/2″ | 3 | 15.5 |
| 17.316.24 | 1″1/4 | 1/2″ | 4 | 20.5 |
Applications
- Marine water distribution systems
- Fuel distribution installations
- Compressed air systems
- Industrial fluid distribution
- Equipment supply manifolds
- Plumbing and utility networks
Technical Specifications
| Property | Specification |
|---|---|
| Material | Brass |
| Type | Linear Distribution Manifold |
| Centre Distance | 50 mm |
| Main Line Sizes | 1″, 1″1/4 |
| Branch Outlet Size | 1/2″ |
| Number of Outputs | 2 to 6 |
