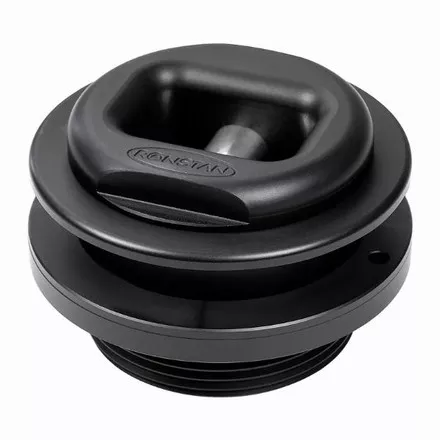

Ronstan Removable Lashing Pad Eye – Multiple Sizes Available
Lightweight and strong removable alloy pad eye with integral threaded plug.
Specifications
- Lightweight, strong and removable.
- Ideal for use with Dyneema® strops.
- Dust cover prevents grit entering the threaded socket.
- Use with Dyneema® lashing/strop of appropriate diameter (see below).
Materials
- Alloy padeye, socket, and clamping ring.
- Grade 316 stainless steel cross pin.
| Part Number | Pin Size | Dimensions (AxBxCxDxE) | Dyneema Lashing/Strop | Deck Thickness (Min – Max) | B.L. | M.W.L. | Weight | Pin Diameter |
|---|---|---|---|---|---|---|---|---|
| RON-RF2437-12 | 12mm | 39 x 76 x 12 x 77 x 54mm | Up to 10mm (3/8″) diameter | 13mm (1/2″) – 32mm (1 1/4″) | 8000kg | 4000kg | 300g | 12mm |
| RON-RF2437-16 | 16mm | 49 x 99 x 16 x 99 x 72mm | Up to 12mm (1/2″) diameter | 20mm (25/32″) – 39mm (1 1/2″) | 14000kg | 7000g | 650g | 16mm |
