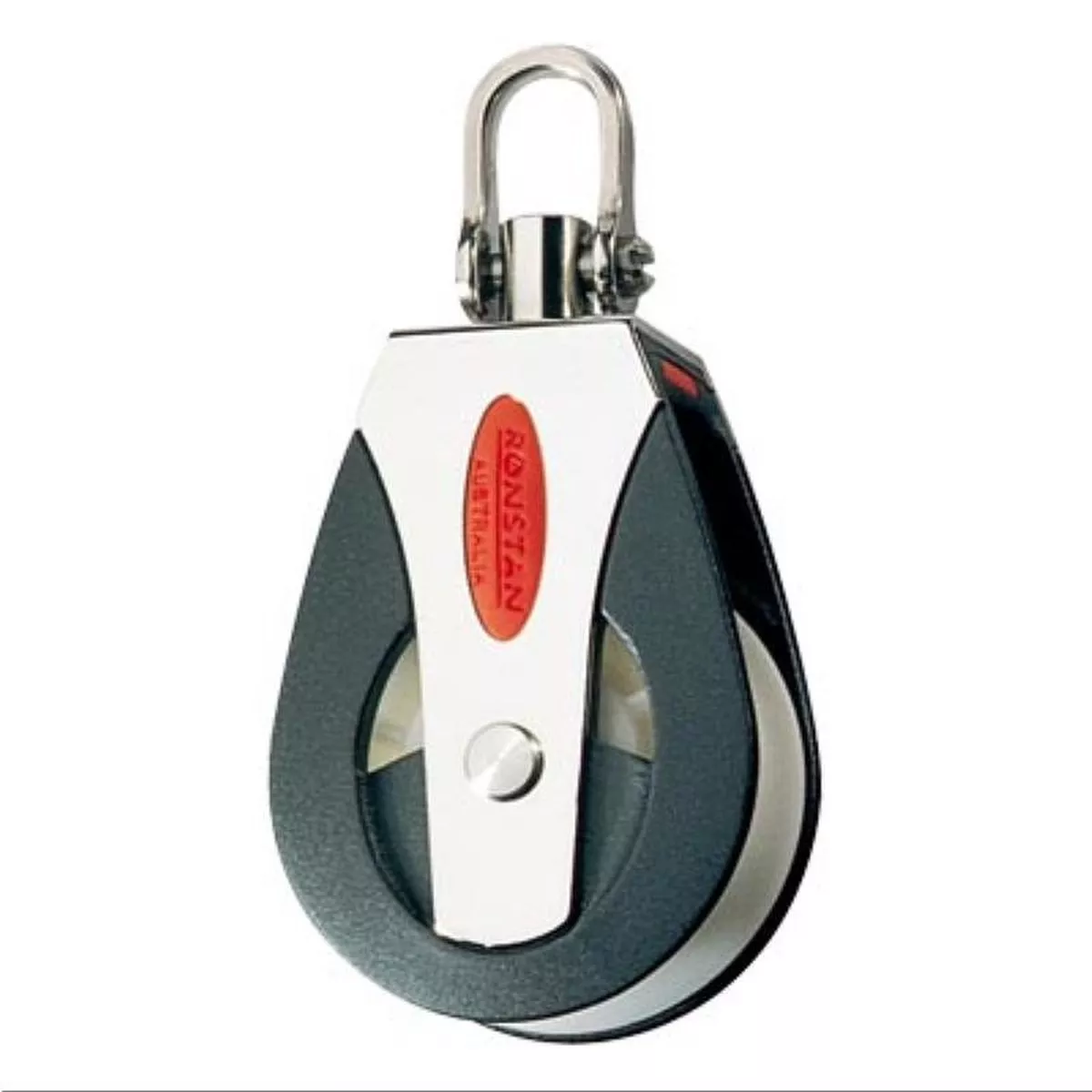

All purpose (AP) blocks are a great all around solution. Self-lubricating Acetal polymer sheaves running on polished stainless steel races perform equally well with dynamic loads and high static loads.
For durability and a long service life, these blocks are the right choice for sheets, halyards and control line applications for cruising and racing. Captive Lock™ universal head can be fixed in either of two planes, or free to swivel as required
Features:
- Exceptionally high working loads
- Low maintenance, long service life
- Self-lubricating Acetal polymer sheave ensures low friction and extreme durability
- Captive Lock™ universal head
- Slotted pin shackle eliminates fouled lines
Applications:
- Mainsheet and halyard applications, vang and spinnaker control lines on boats to 10m (33ft)
- S60 – on boats up to 12m (40ft)
Materials:
- Grade 316 stainless steel load strap and head fitting
- Impact and UV resistant, fibre reinforced Nylon cheeks
| Part Number | Sheave Ø | Max. Rope Ø | Max. Cable Ø | Pin Ø | M.W.L. | B. L. | Weight |
|---|---|---|---|---|---|---|---|
| RON-RF51100 | 50mm | 12mm | – | 5mm | 750kg | 1500kg | 118g |
