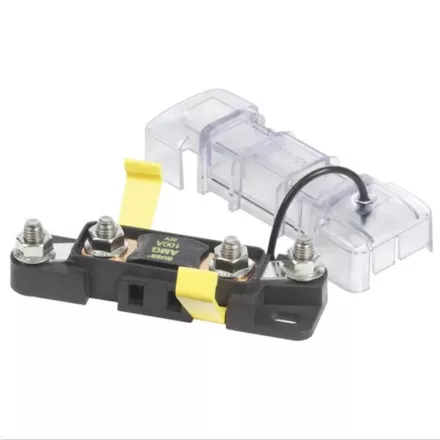

Safety Fuse Block MEGA or AMG. Ignition protected for use on gasoline powered boats with 30A to 300A circuits
- Sealed cover protects fuses from the harsh marine environment and satisfies ABYC/USCG insulation requirements
- Cover breakouts allow wire access in three directions
- One-piece stainless flange nuts ensure safe and secure connections
- Accepts square format standard or custom label
- Fuses sold separately
- Meets ISO 8846 and SAE J1171 external ignition protection requirements when cover is secure. IP66 – protected against powerful water jets
| Voltage Max. Operating | 32V DC |
|---|---|
| Wire Size to Meet Rating | 2/0 AWG (70 mm²) |
| Mounting holes | Accept 1⁄4″ (M6) Screws |
| Terminal Stud Size | M8 |
| Part Number | Fuse Type | Fuse Amps Available |
|---|---|---|
| BSS-7721 | MEGA or AMG | 100-300A |
