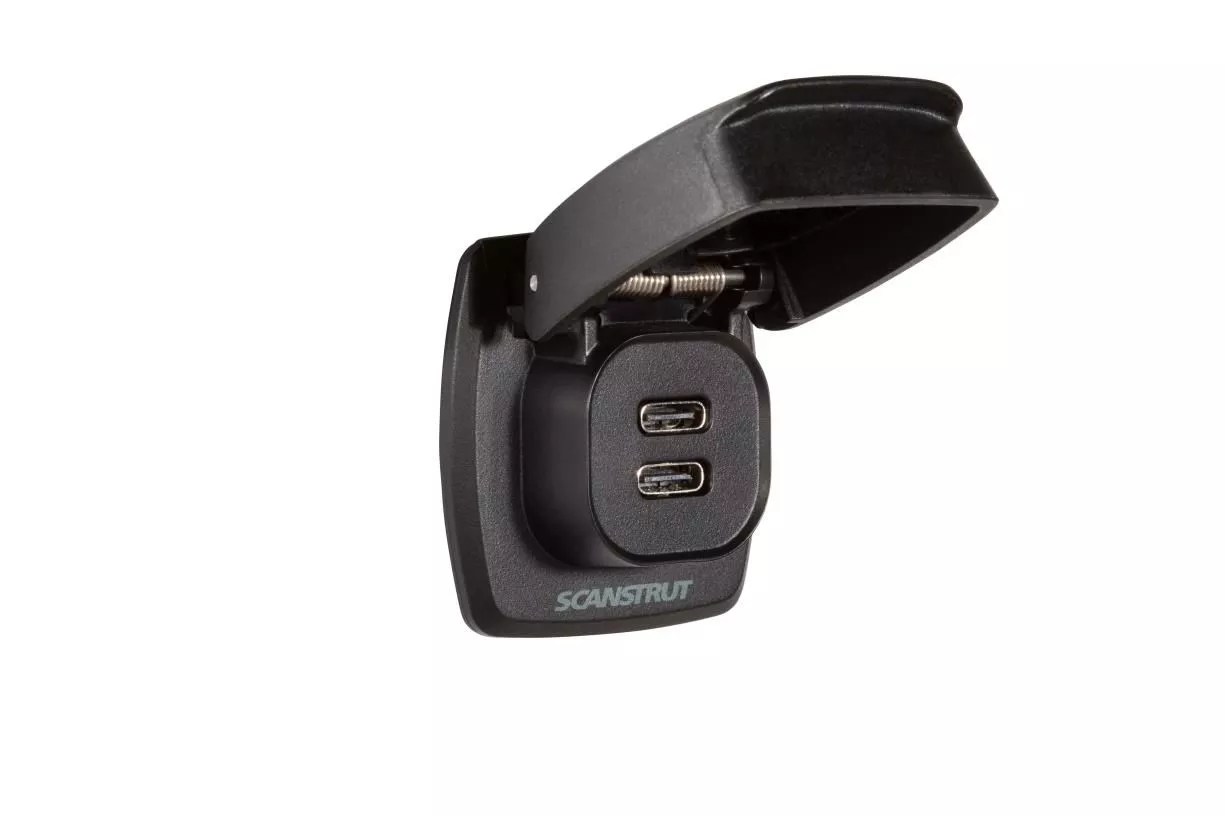

Scanstrut SC-USB-F3 – Flip Pro Max USB-C Connection
Flip Pro Max provides rapid charging for all your USB-C devices onboard, compatible with both 12V and 24V systems. Its compact design and marine-grade materials make it ideal for harsh environments while maintaining sleek usability.
- Power Output: 2x 60W USB-C ports for ultra-fast charging.
- Port Protection: Spring-loaded cap keeps ports safe from water and debris when not in use; locks open while charging to protect cables.
- Construction: Compact footprint, premium marine-grade materials, IPX4 waterproof for full washdown readiness.
- Charging Speeds: 36W on 12V systems, 60W on 24V systems—perfect for laptops, tablets, and phones.
- USB-C Output Details:
- 24V System: 5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓3A Max
- 12V System: 5V⎓3A, 9V⎓3A, 12V⎓3A Max
- Universal Fit: Works with any USB-C device, allows simultaneous charging of 2 devices.
- Installation: Uses a Ø32mm (1.25”) hole saw; optional front bezel included.
- Marine Ready: Anti-corrosion internal coating, UV resistant, 316 stainless hinge and spring, IPX4 waterproof with cover closed.
- Important Info: Use supplied cables for maximum performance; full 60W output requires 24V system.
- Electrical Specs:
- Input Voltage: 10-32V DC (12/24V system)
- Input Current: Max 6A (10A fuse recommended)
- Standby Draw: 0.01W
- Certifications: CE, FCC, UKCA, C-Tick, ROHS, WEE
- Item Number: SCSC-USB-F3
