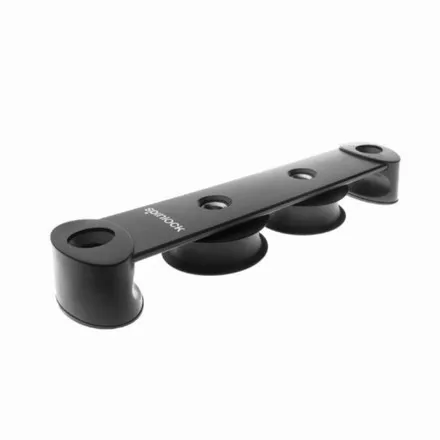

T50 Deck Organiser Info:
- Minimal overall length
- Efficient bearings surface reduces winch effort and increases halyard life
- Integral end fairings for safe side loading
- Asymmetric version reduces deck footprint and saves weight
- T50 can ‘stack’ for limited deck area or adding extra capacity. T50 will also ‘stack’ on a TC50
- Vari-camber feature: T50 Organisers are designed to follow the curve of the deck when fitted
Spec’s:
Sheave Diameter/Type : 50mm (2″) composite
SWL per sheave : 1000kg (2200lbs)
Total SWL per unit : No of sheaves x500kg (1100lbs)
Line Diameter : Up to 14mm (9/16″)
Weight:
185g (6.5oz) for 2 sheave organiser
45g (1.6oz) per extra sleeve
Fasteners:
2x M6 (1/4″) CSK (not supplied)
