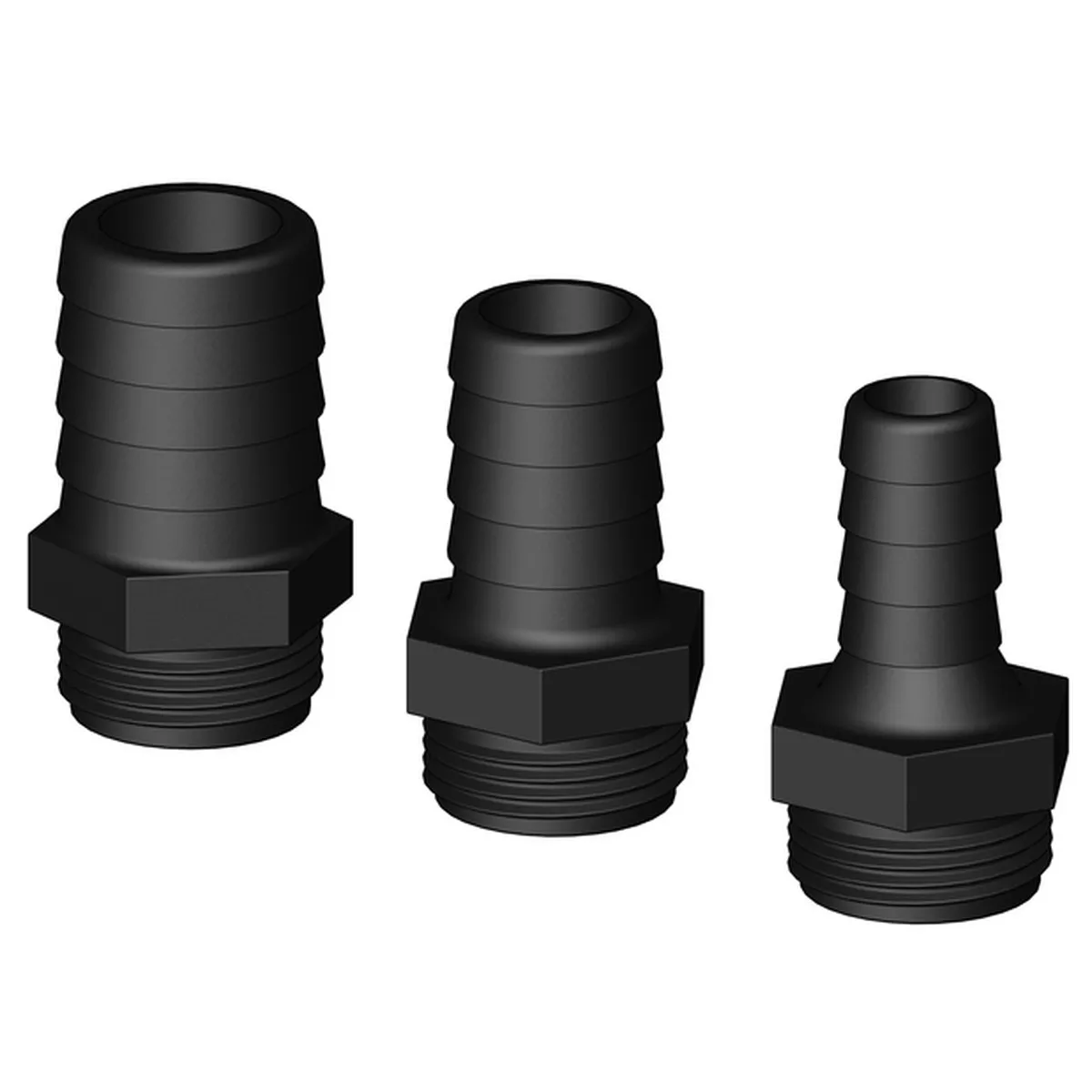

TruDesign Hose Adapter – Straight Tail
- Glass-reinforced nylon composite – High strength and light weight.
- Immune to corrosion and electrolysis – Long life with no concerns over decreased performance due to corrosion.
- Chemical resistant – Unaffected by diesel, petrol, or chemicals.
- UV resistant – Will not degrade or discolour with ultraviolet light from the sun.
- High quality surface finish – Will not discolour with green film as similar bronze fittings do.
- BSP and NPS (Parallel) threads – Universal compatibility to TruDesign Ball Valves, threaded fittings, and other marine components.
- Large operating temperature range – Suitable for all marine environments, from -20°C to +100°C.
| Part Number | BSP Thread | Hose Tail Diameter |
|---|---|---|
| SAW-450128 | 1/2″ BSP | 13mm (1/2″) |
| SAW-450129 | 1/2″ BSP | 16mm (5/8″) |
| SAW-450130 | 3/4″ BSP | 19mm (3/4″) |
| SAW-450109 | 3/4″ BSP | 22mm (7/8″) |
| SAW-450132 | 1″ BSP | 25mm (1″) |
| SAW-450108 | 1″ BSP | 28mm (1-1/8″) |
| SAW-450134 | 1-1/4″ BSP | 32mm (1-1/4″) |
| SAW-450112 | 1-1/4″ BSP | 38mm (1-1/2″) |
| SAW-450110 | 1-1/2″ (BSP) | 32mm (1-1/4″) |
| SAW-450136 | 1-1/2″ BSP | 38mm (1-1/2″) |
| SAW-450138 | 2″ BSP | 50mm (2″) |
| SAW-450268 | 3″ BSP | 63mm (2-1/2″) |
| SAW-450264 | 3″ BSP | 75mm (3″) |
