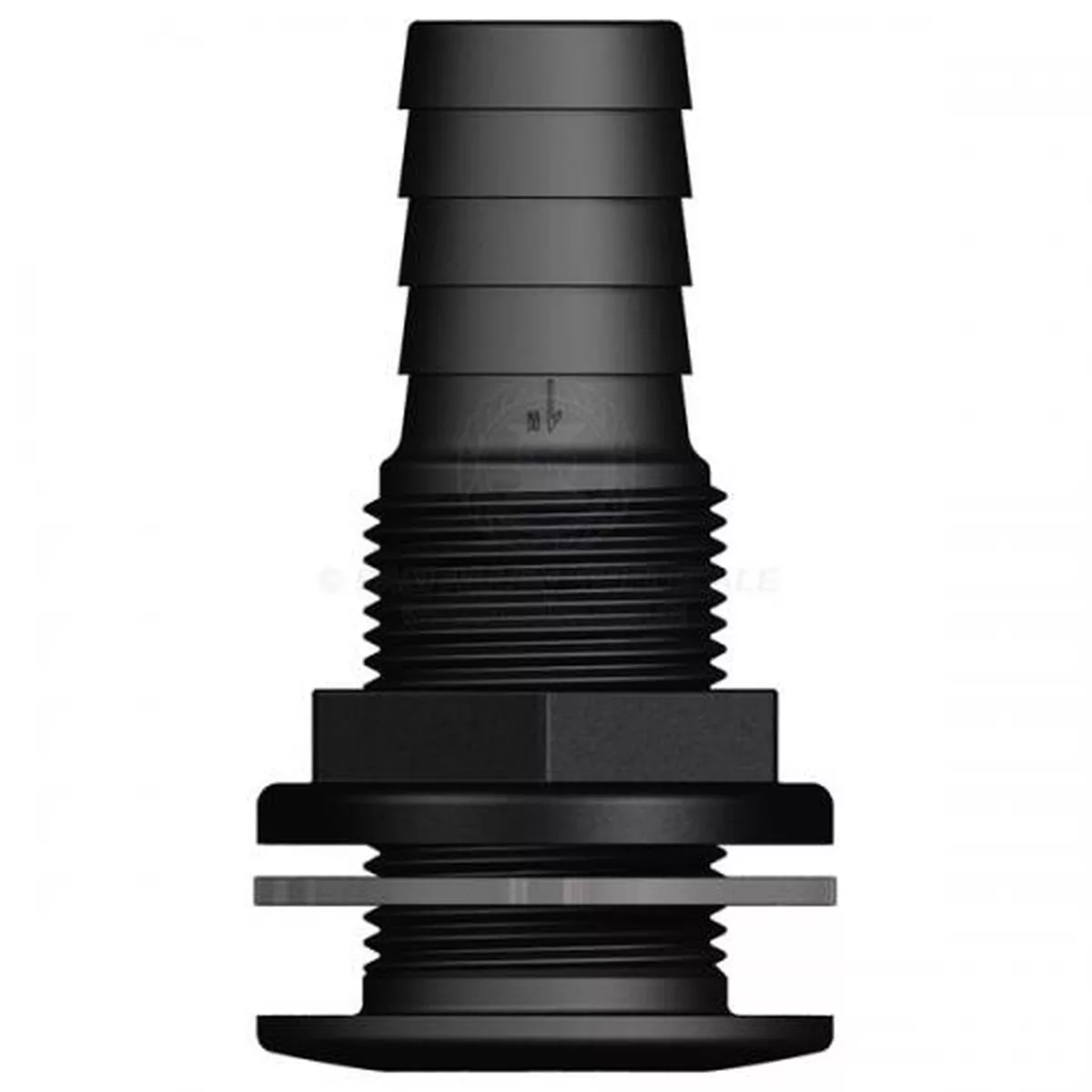

TRUDESIGN Nylon Thru-Hull Fitting with hose tail. Manufactured from high strength, UV-stabilised & glass-reinforced nylon composite making the valve strong and lightweight.
- Glass fibre reinforced nylon composite – High strength and light weight.
- Compatible with all hull types – Can be used on aluminium, steel, wood or GRP hulls.
- Immune to corrosion and electrolysis for long service life with out decreased performance.
- Chemical resistant – Impervious to diesel, petrol and antifouling paints.
- UV resistant – These fittings will not break down with ultraviolet light or discolour from the sun.
- High quality surface finish – Will not discolour with green film as similar bronze fittings do
- UV resistant, suitable for all marine environments.
- Nylon washer supplied.
- Large operating temperature range from -20°C to +110°C.
- All types of standard bedding compounds and epoxy or polyester resins can be used in installation.
- Long Tail – Hose can be fitted with 2 hose clamps for a secure connection.
| Part number | BSP Thread | Hose Tail Diameter | TRUDESIGN Code |
|---|---|---|---|
| SAW-450165 | 1/2″ | 13mm | |
| SAW-450168 | 1/2″ | 16mm | |
| SAW-450166 | 3/4″ | 19mm | 90523 |
| SAW-450167 | 1″ | 25mm | 90524 |
| SAW-450169 | 1″ | 28mm | |
| SAW-450170 | 1-1/4″ | 32mm | 90526 |
| SAW-450171 | 1-1/2″ | 38mm | |
| SAW-450172 | 2″ | 50mm |
