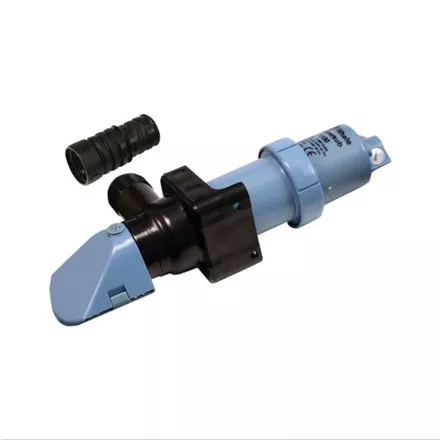

Supersub Electric Bilge Pumps manufactured by Whale.
- The Whale® Supersub 500 and 1100 electric bilge pumps have a super slim, low profile design and feature an easy to clean integral strum box.
- N.B. As with all submersible electrics, attention is needed during installation to ensure that wiring connections remain above water level.
- Specified output is US gph open flow.
Features:
- Extremely low profile, only 54mm high
- Vertical or horizontal outlet position
- Vertical or horizontal mounting
- Removable strainer for easy cleaning
- Strainer design leaves minimum water level
- 131658/131660 features 25/28mm stepped hose connector
| Part Number | Power | Capacity (Open Flow) | Capacity @1m head | Mount Screws (gauge) | Outlet Diameter |
|---|---|---|---|---|---|
| WHL-131658 | 12V (4.3 amps) | 66L/m (1050gph) | 47L/m (750gph) | 4 r/h | 25/28mm |
| WHL-131660 | 24V (2.2 amps) | 66L/m (1050gph) | 47L/m (750gph) | 4 r/h | 25/28mm |
